Automotive connectors have signals, power and coax

Molex has introduced MX-Dash, a family of single automotive connectors that combine power, signal and high-speed data inserts for zonal architectures.

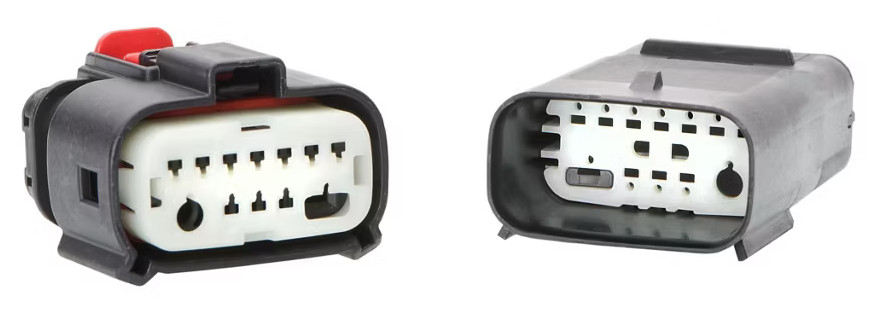

Molex MX-DASH automotive power signal connector

In wire-to-wire and wire-to-board form, they are aimed at autonomous driving modules, cameras, GPS, infotainment, lidar, displays and sensors.

There are sealed and un-sealed options, and configurations with 0.50, 0.64, 1.20, 1.50, 2.80 or 4.80mm terminals as well as coaxial Fakra Mini contacts.

There are multiple options, said the company: “For instance, the 31+1 way connector combines 31 power and ground circuits, as well as a high-speed data connection,” and added that “MX-Dash connectors have been validated in accordance with global industry standards groups, including USCAR, Peugeot and IEC.”

Not all connectors are validated to all standards.

Find a little more information on this product page
