16,384 LEDs in a car headlight

“The new 16,384 pixel µPLS micro-Pixelated Light Solution is our latest addition to Nichia’s portfolio of high-class automotive lighting solutions,” says Nichia’s Yusuke Yamazaki, “it combines high-definition resolution with the industry’s highest light output, by providing four-times wider field-of-view with significantly higher light output than any other current micro-mirror based HD matrix-light solution. For this reason, the advanced HD light can warn drivers of hazards by highlighting people or objects on or by the side of the road. It can also project markings on the road to guide the driver through a construction site or intersection. In addition, functions such as the glare-free high beam or bending light work more precisely and smoothly compared to current adaptive driving beam solutions. This takes the driver’s road safety and driving comfort to a new level.”

“The µPLS is industry’s first fully integrated matrix LED driver capable of driving 16,384 LEDs, combining all required micro-LED driver circuitry with extensive diagnostics and high-speed video and control interfaces,” says Infineon’s Andreas Doll,  “we enable the vision of our customers to deploy fully digital light on the road, saving them overall system cost at a very small form factor at the size of a single semiconductor chip. The µPLS is another great example of how Infineon products support digitalization as well as decarbonization towards a net-zero society.”

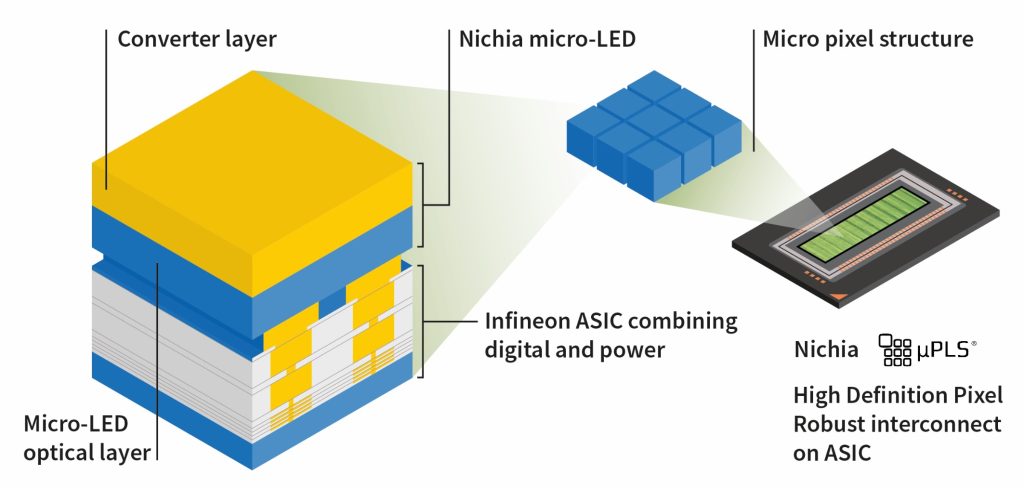

The  HD light engine uses Nichia’s micro-LED technology and an integrated LED driver IC from Infineon that can drive all 16,384 micro-LEDs individually using pulse-width modulation (PWM) control.

Additionally, the driver IC monitors each micro-LED separately and provides on-chip temperature monitoring allowing for optimal thermal control. Integrated video interfaces enable high-speed transmission of the video signal from the light pattern generator unit.

Unlike current HD matrix solutions, Infineon’s driver IC only activates the LEDs that are actually needed for a light pattern. This increases the energy efficiency of the µPLS light engine at much smaller form factor compared to micro-mirror-based HD matrix solutions in the market.

This allows for smaller and slimmer headlamp designs in the future. In addition, the new HD light engine enables adjustments that can be digitally programmed at the factory or activated by the vehicle manufacturer or driver on demand.

For example, the different requirements of left- and right-handed drivers can be considered,  increasing user-friendliness.
