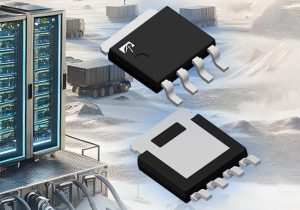

Available at 40V, 60V, and 100V (see table) “AOS’s LFPAK enables higher board-level reliability due to gull-wing leads, which offer a ruggedised solution for board-level environmental stresses”, according to the company. “Gull-wing leads also enable optical inspection during PCB manufacturing.”
Inside, a copper clip is intended to improve heat dissipation.
Picking the 40V 200A OLF66417, maximum junction to case resistance is 0.7°C/W (0.55°C/W typical)
| Part | VDS | VGS | Id (25°C) | Rds(on)max (10Vg) | Tj max |
| AOLF66412 | 40V | ±20V | 352A | 1.5mΩ | 175°C |
| AOLF66413 | 40 | 20 | 374 | 1.5 | 175 |
| AOLF66417 | 40 | 20 | 200 | 2.6 | 175 |
| AOLF66610 | 60 | 20 | 294 | 2 | 175 |
| AOLF66910 | 100 | 20 | 187 | 4.7 | 175 |
